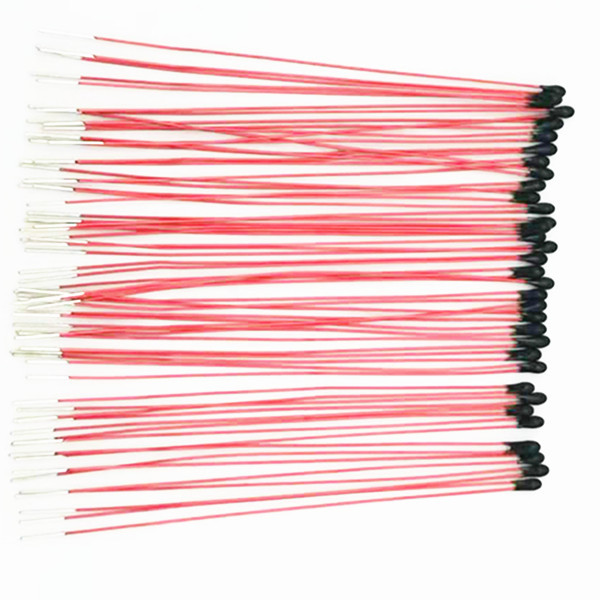

Waterproof NTC Thermistor Probe For Refrigerators And Air Conditioners

Name: Waterproof NTC Thermistor Probe For Refrigerators And Air Conditioners
Brand: JINGPU SENSOR
Price: 1 USD

Quality Waterproof NTC Thermistor Probe For Refrigerators And Air Conditioners for sale

Brand Name : JINGPU SENSOR

Model Number : MFT

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 500 Pieces

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Package

Probe : stainless steel or copper case

Operating temperature range : -40℃~105℃

Application : Refrigerator, household air conditioner, central air conditioner

Chip : NTC Chip

Tube : Heat-shrinkable tube

Cable : PVC&XLPE Cable

Contact Now

Waterproof NTC Thermistor Probe For Refrigerators And Air Conditioners

Product Description:

Waterproof NTC temperature sensors for refrigerators and air conditioners, the probes are usually made of stainless steel or copper case, and the sensor probes are protected by double-wall heat-shrinkable sleeves.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -40℃~105℃

Stable performance

Accurate temperature measurement

Good sealing performance

Application:

Refrigerator, household air conditioner, central air conditioner

Structure and Dimensions(mm):

Waterproof NTC Thermistor Probe For Refrigerators And Air Conditioners

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	Max.3.0	Max.20	-40℃~125℃	100~5000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600
